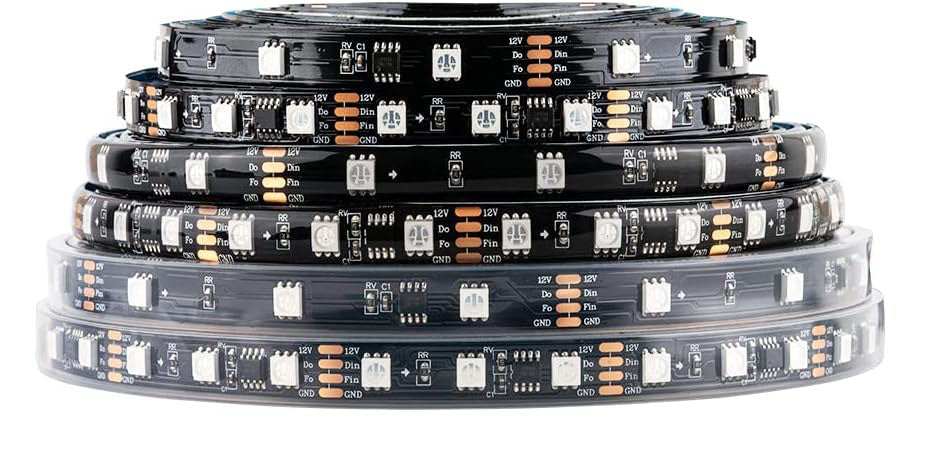

TM1934 LED Light Strips RGB SMD5050 Signal Break-Point Continuous Transmission External IC LED Light Strips One-to-Three Control
Product Description

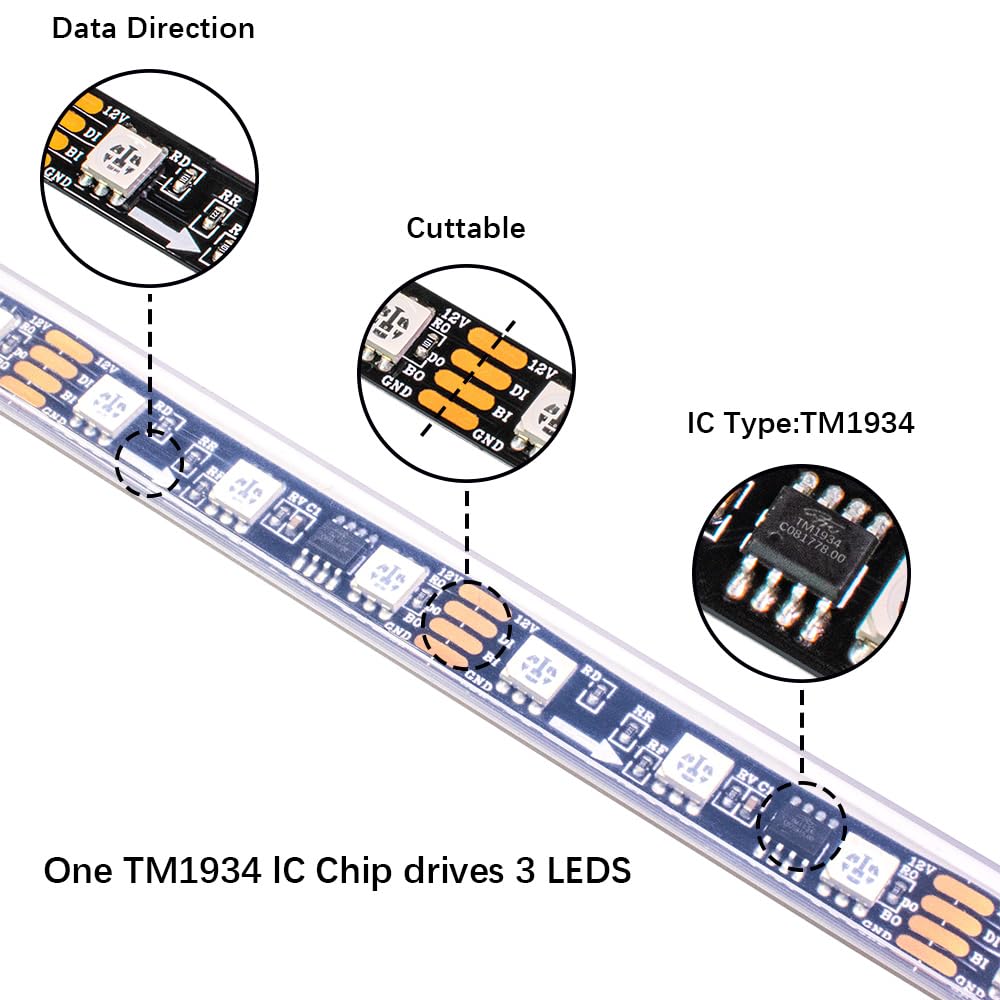

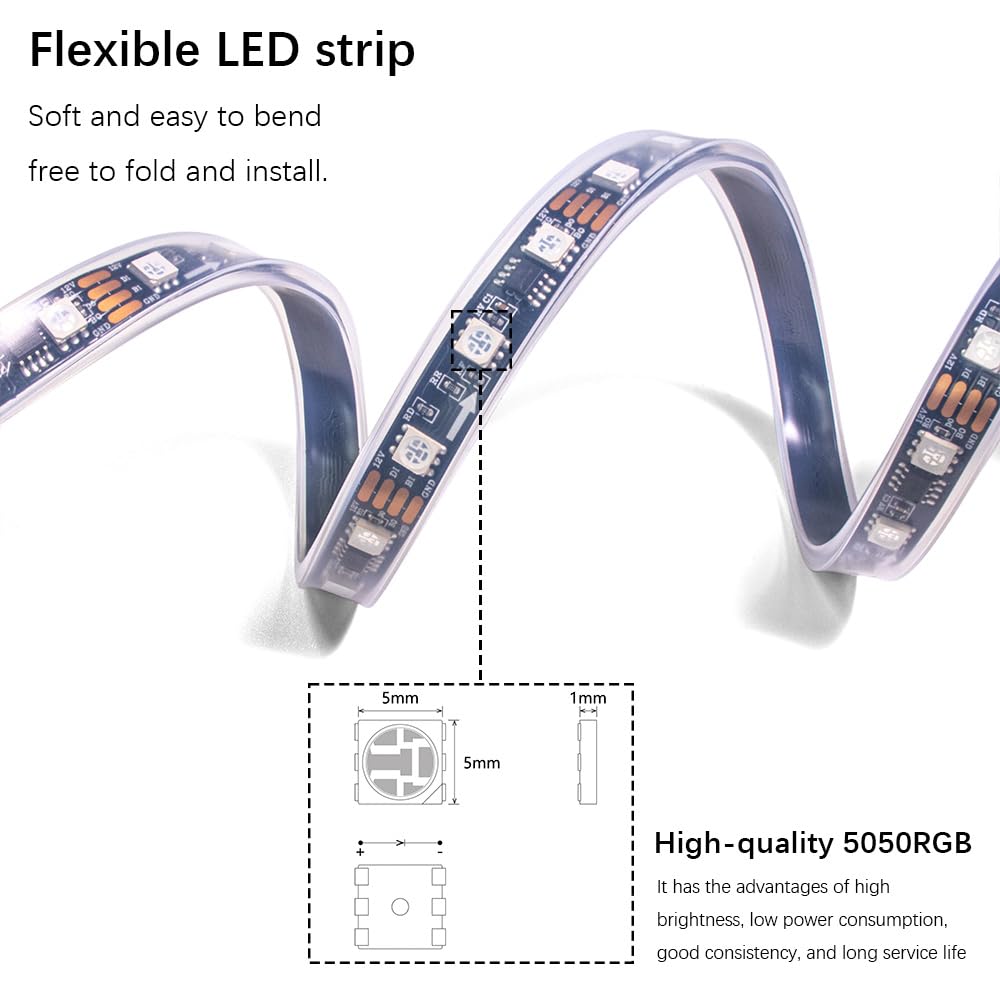

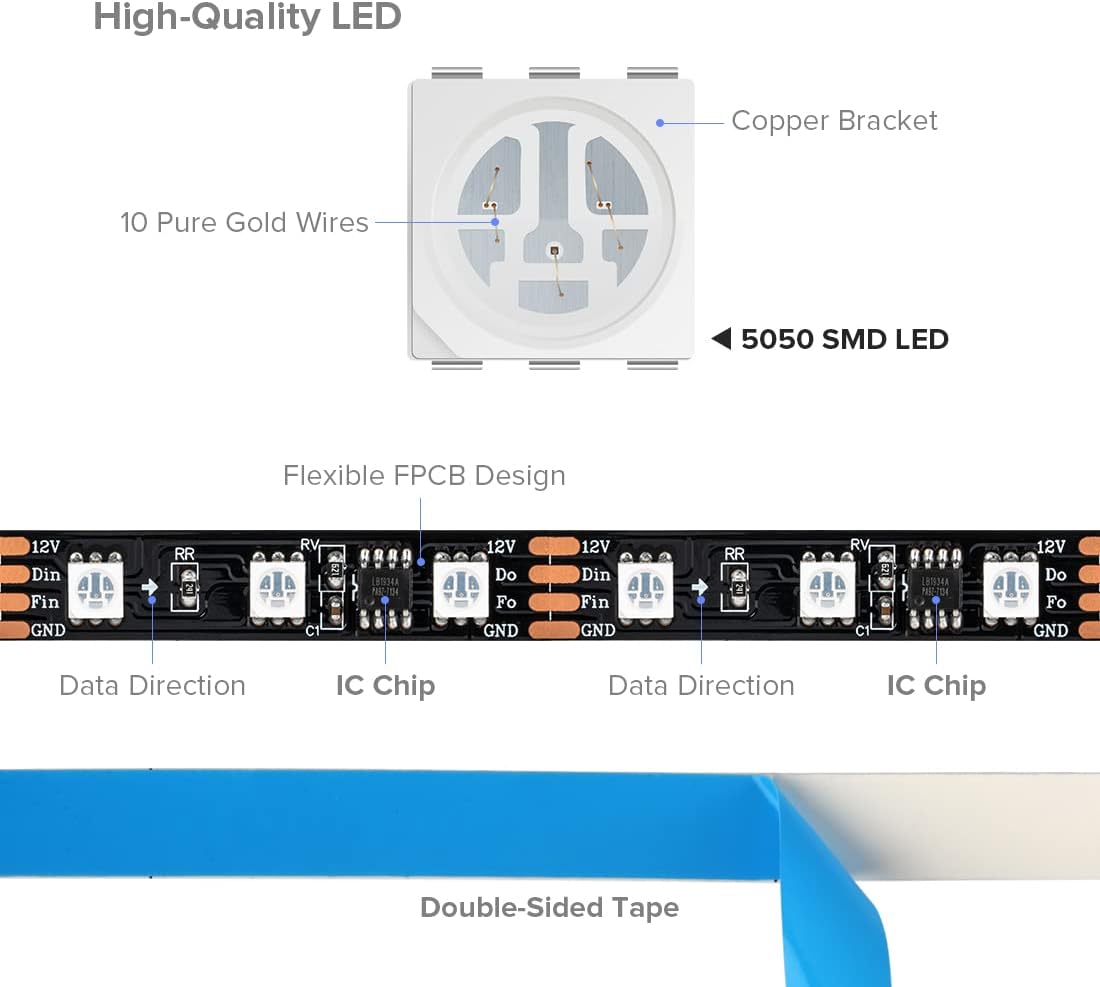

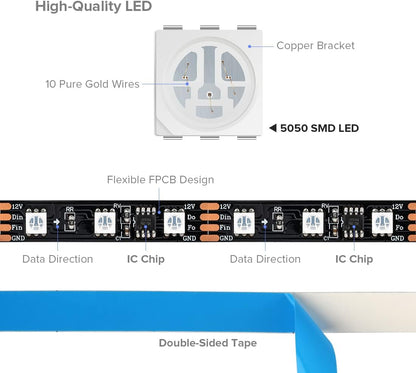

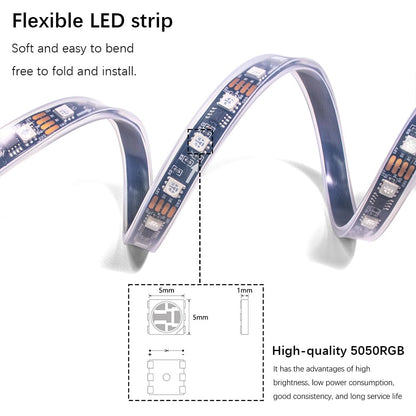

TM1934 IC Chip.Addressable groups of 3 LEDs.One TM1934 IC drives three LEDs .Dream full color Programmable LED Strip.5050SMD .256 brightness display and 24-bit color display.Every 3 LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want. 100 IC=100 Pixel=300 LEDs

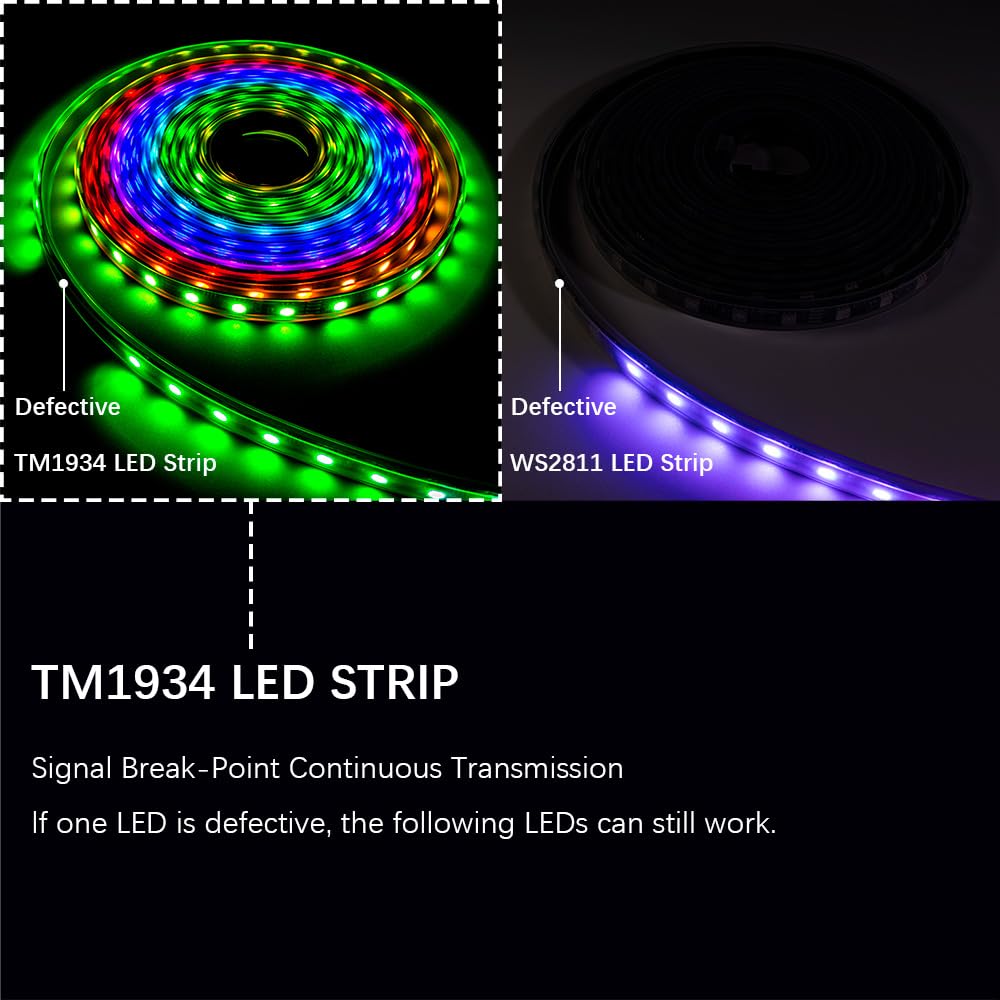

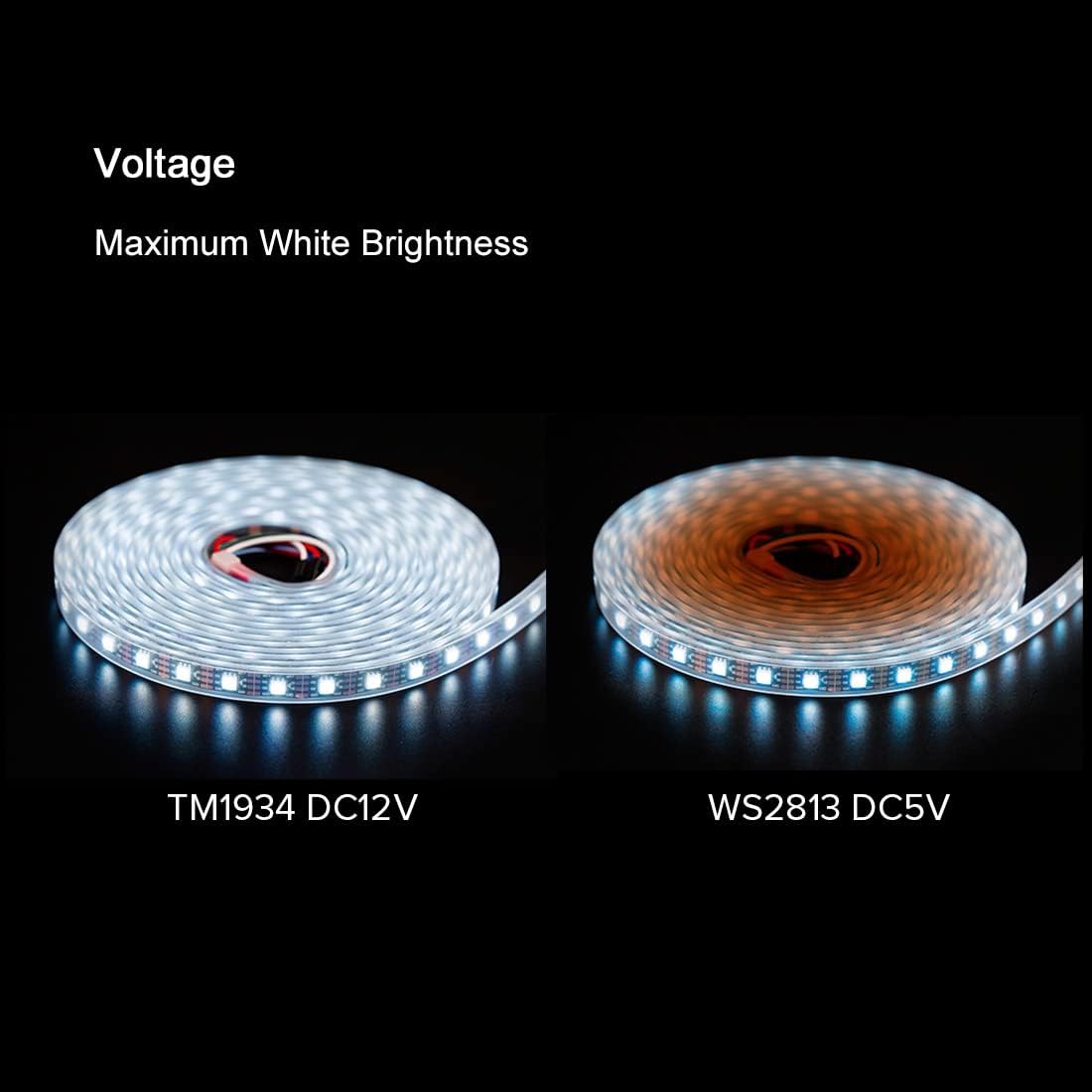

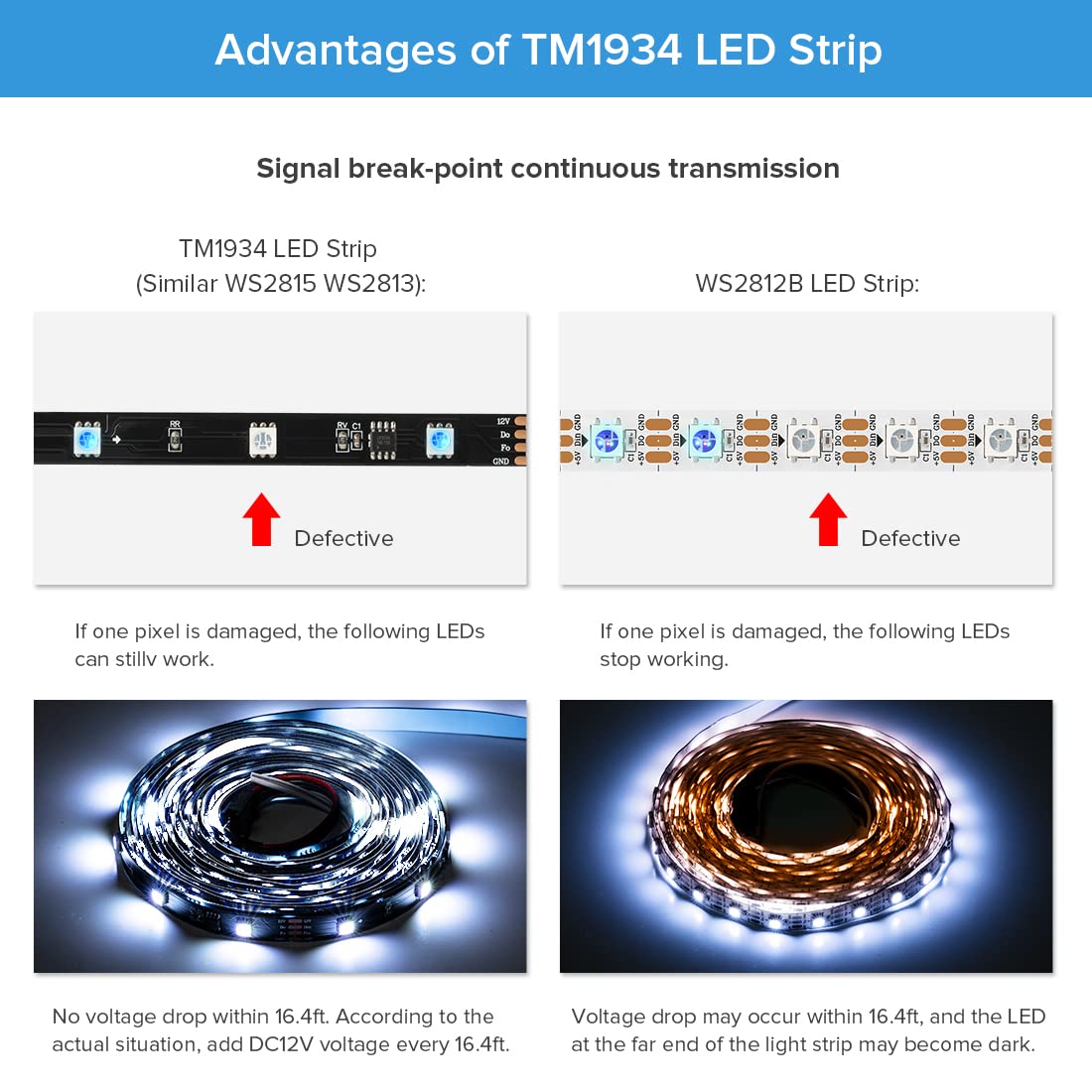

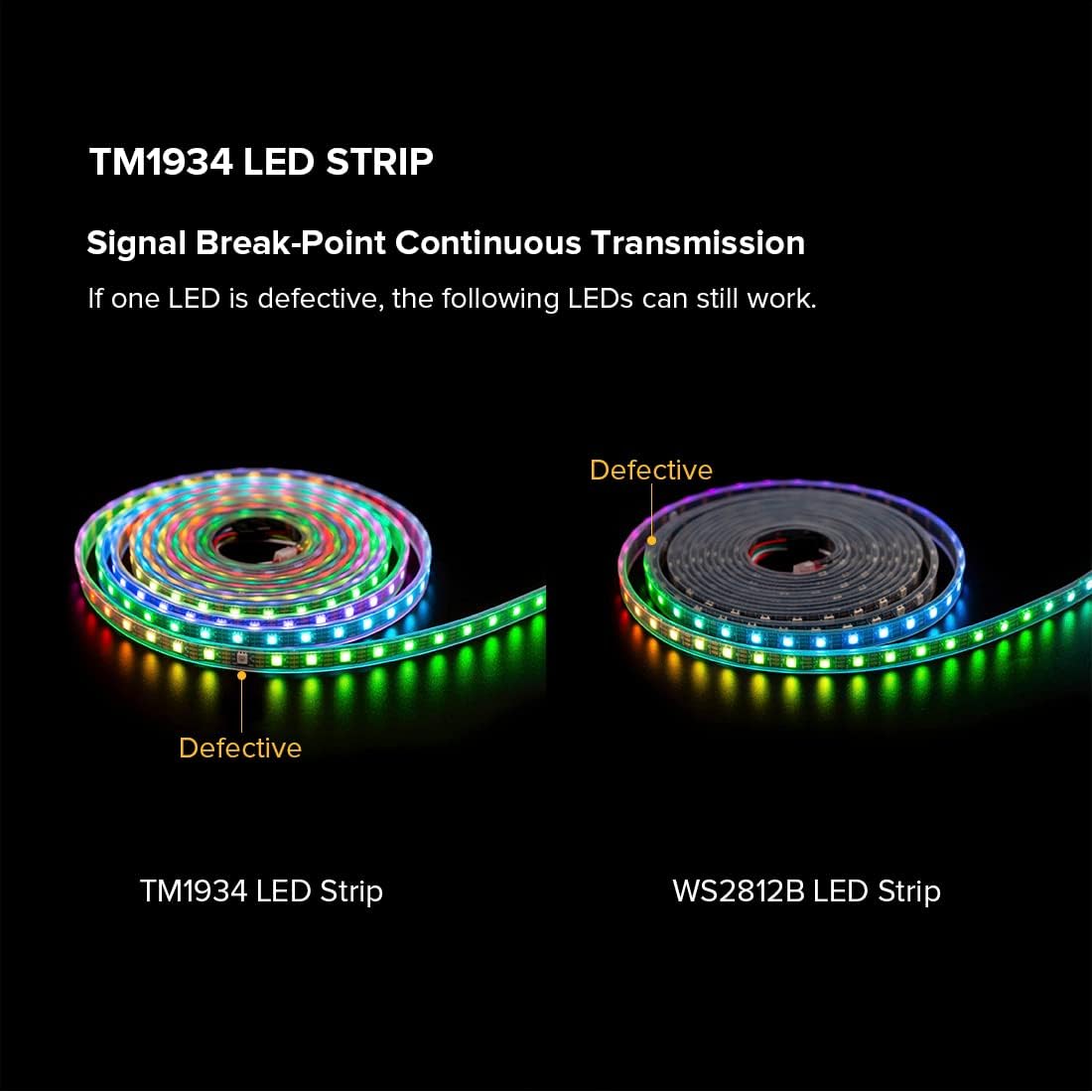

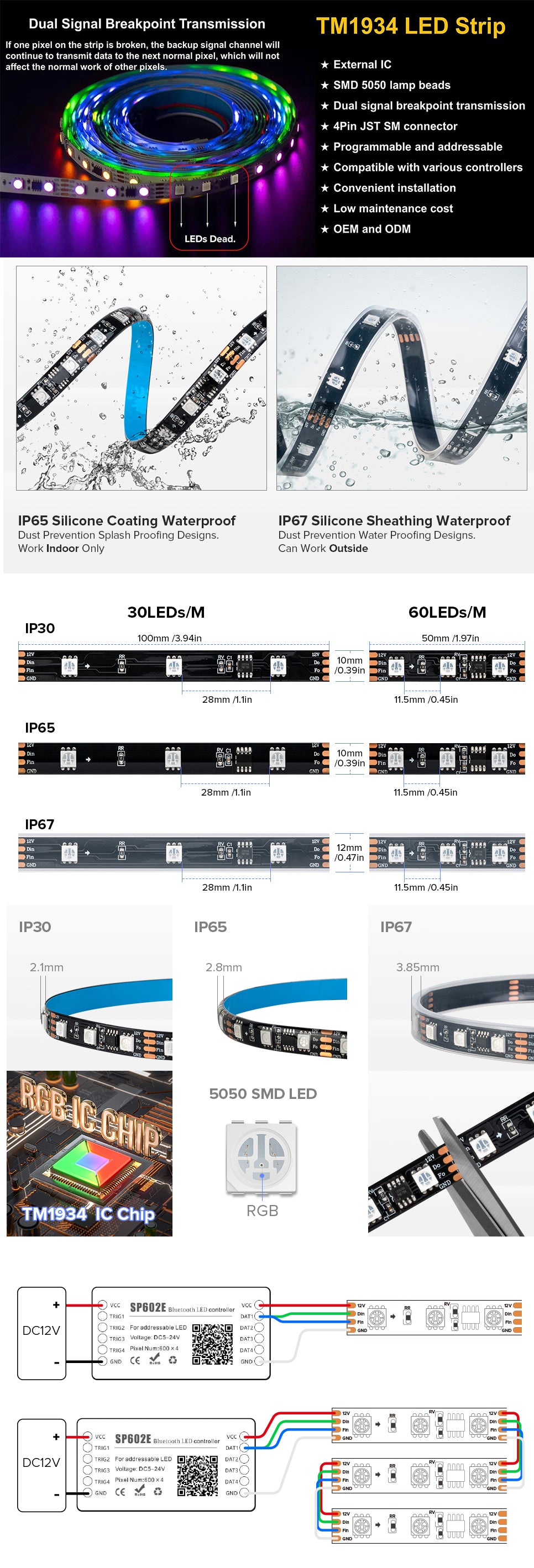

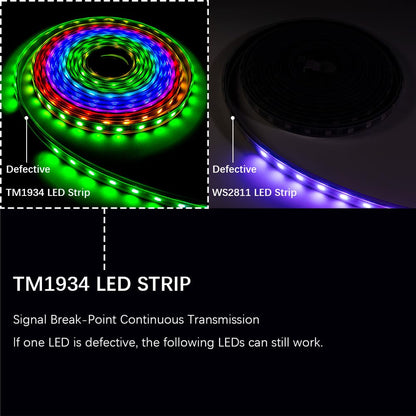

Dual-Signal. Signal break-point continuous transmission. If one pixel is damaged, the following LEDs still work .Static effect, Chasing effect, special effect etc .Comes with backup data. Maximum white brightness , 16.4ft no voltage drops.Ultra bright.
Differences between WS2813, WS2815 and TM1934. TM1934 : DC12V/24V One IC drives 3 LEDs. WS2813 :DC5V One IC drives 1 LED. WS2815 :DC12V One IC drives 1 LED. Similarities:4 pin .Dual-Signal. 5050SMD .RGB IC Chip.

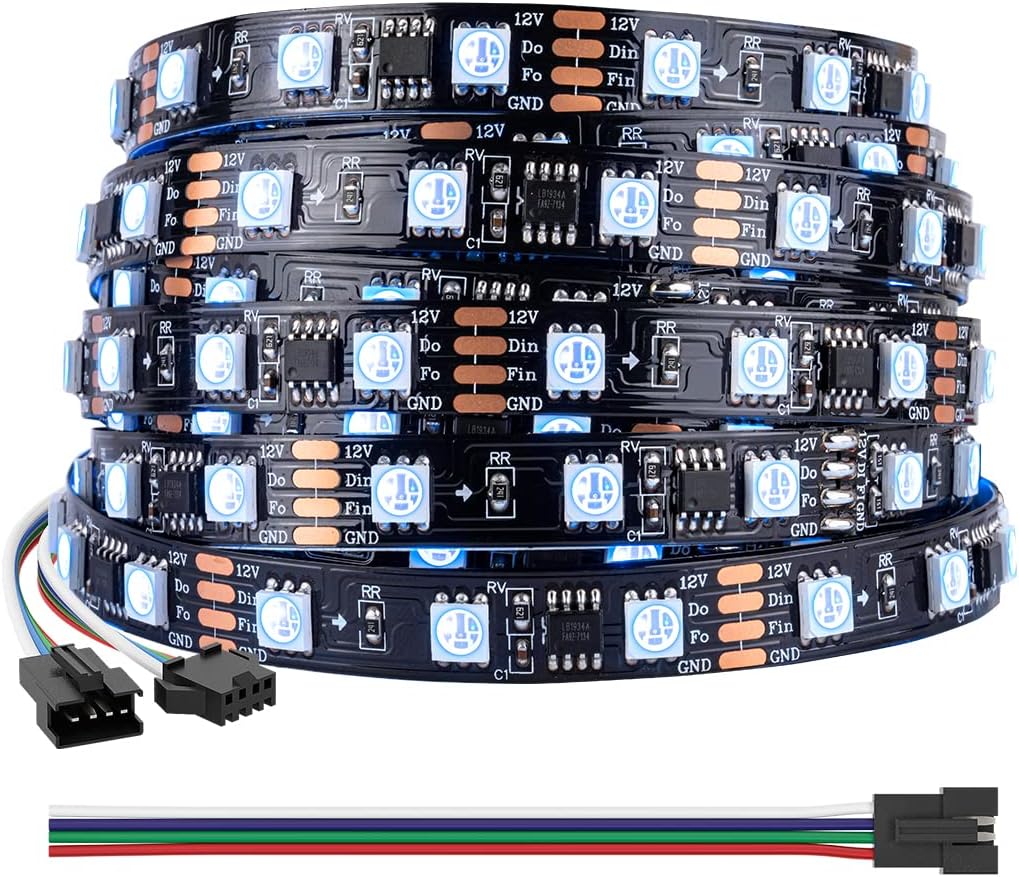

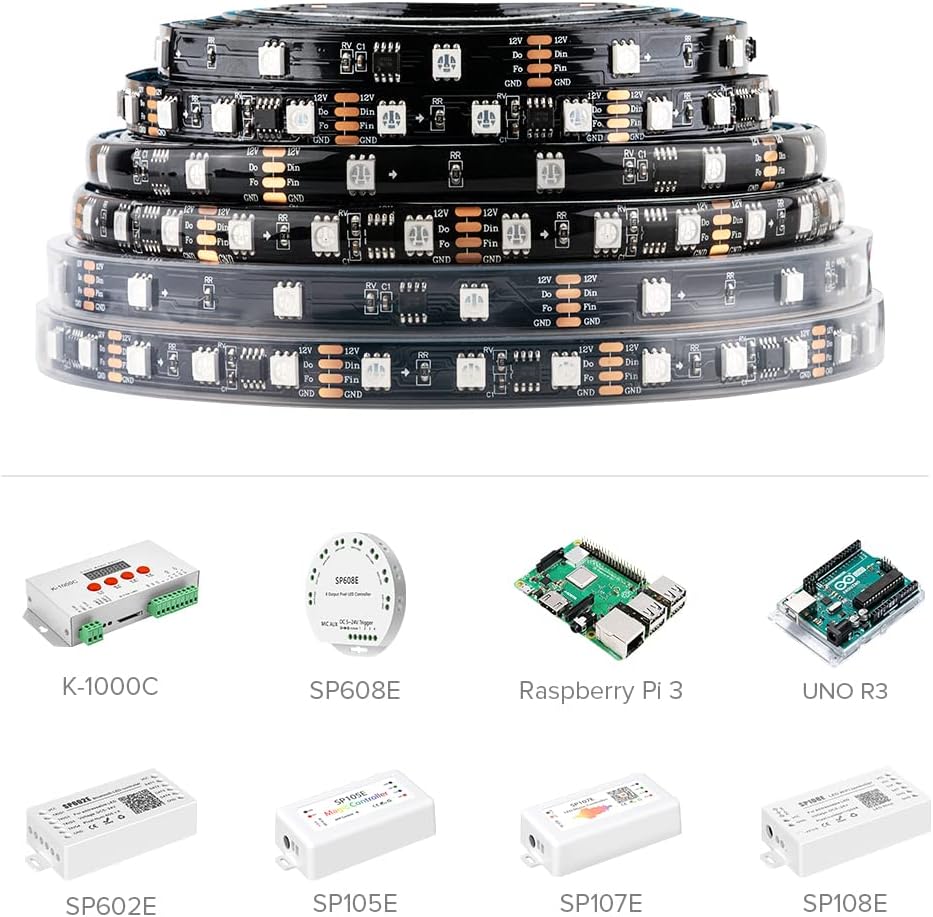

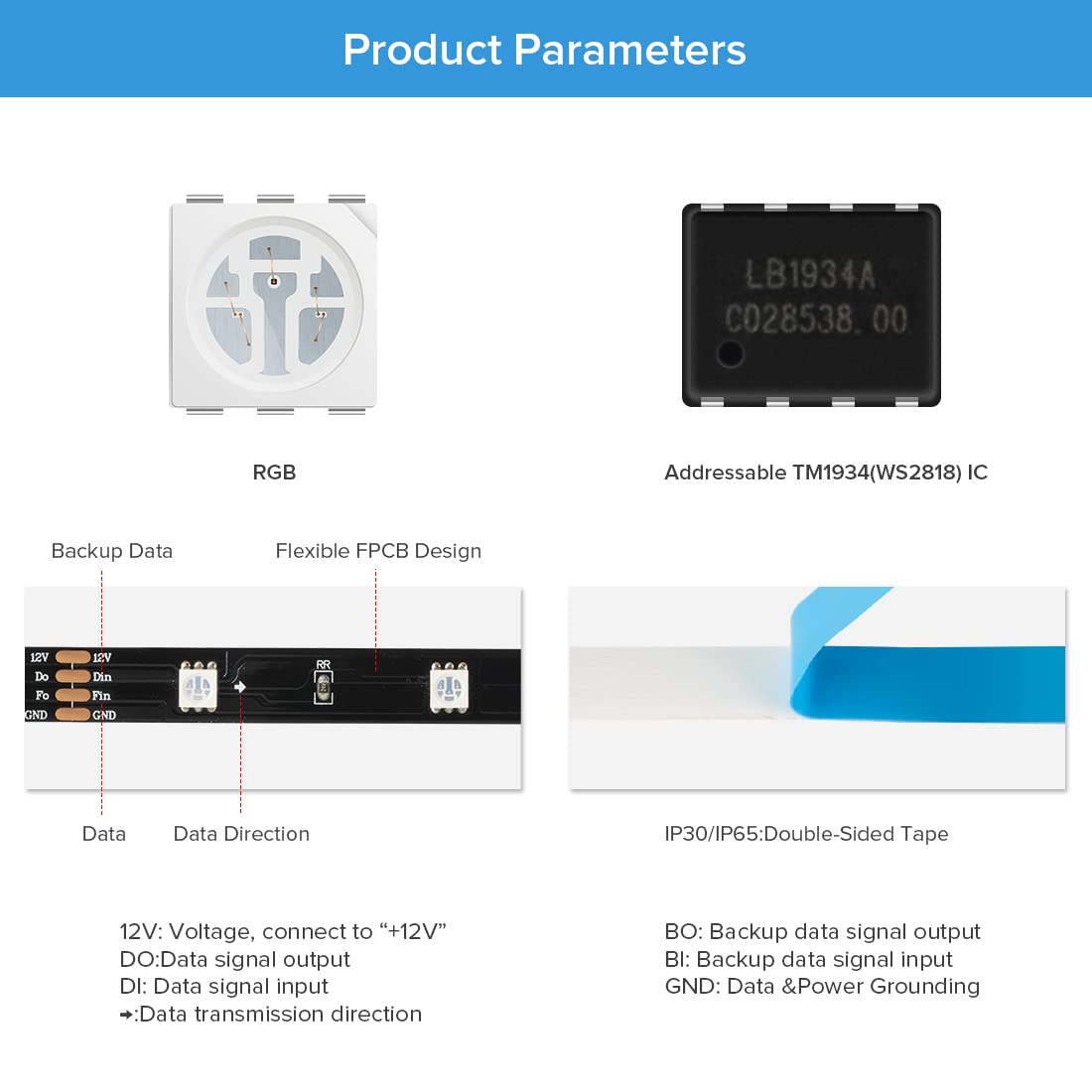

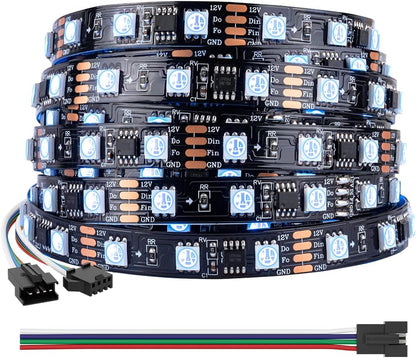

Flexible PCB Board,4 pin JST-SM connectors on both ends for easy installation and connecting LED Strips in series.Separate power/ground wires on both ends for injecting power in case of voltage drop. Works great with K-1000C,SP602E,SP608E,SP105E,SP107E,SP108E Music Blutoooth APP controller.DIY Controllers: Rasp ,R3 ,Mega,etc.
Easy installation.IP67 has no double side tape on it's back . It comes with screws and clips instead of the self-adhesive back tape. With 4-pin male connector and separated power/ground wires on both ends, which makes it easy to hook up each other and wire up for power.There is adhesive tape on IP30/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like.
Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration.There is double side tape on the back, so you can stick it to the wall or other items conveniently as you like.IP67 waterproof should use screw and clips to fix,there is no double side tape on IP67 Back.

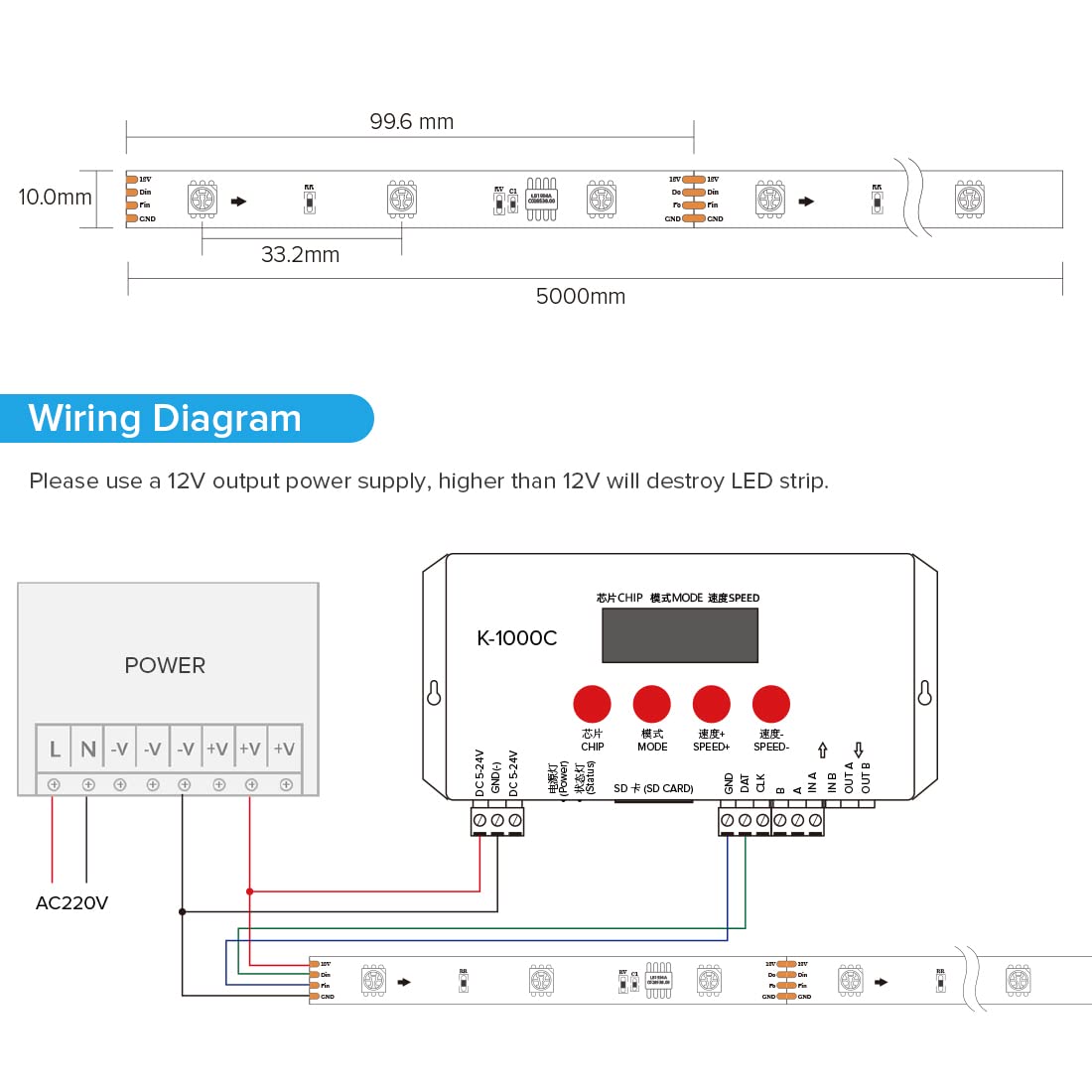

Only Support DC12V. Do not try DC24V power supply.Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.Power adapter and controller need to be purchased separately

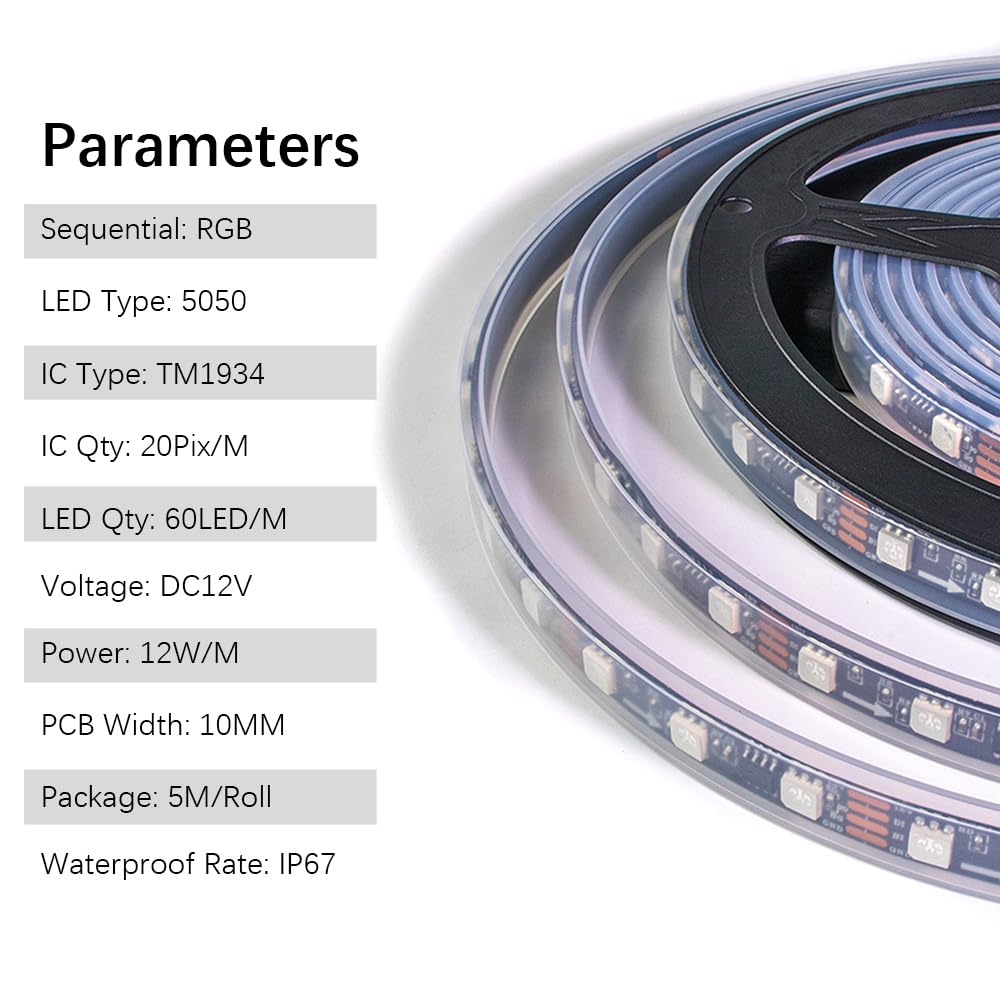

Recommand power supply :DC12V6A 72W . Package contents:1X 16.4FT TM1934 LED Strip 1X 4 pin male jst connector .The power supply and controller need to be purchased separately
