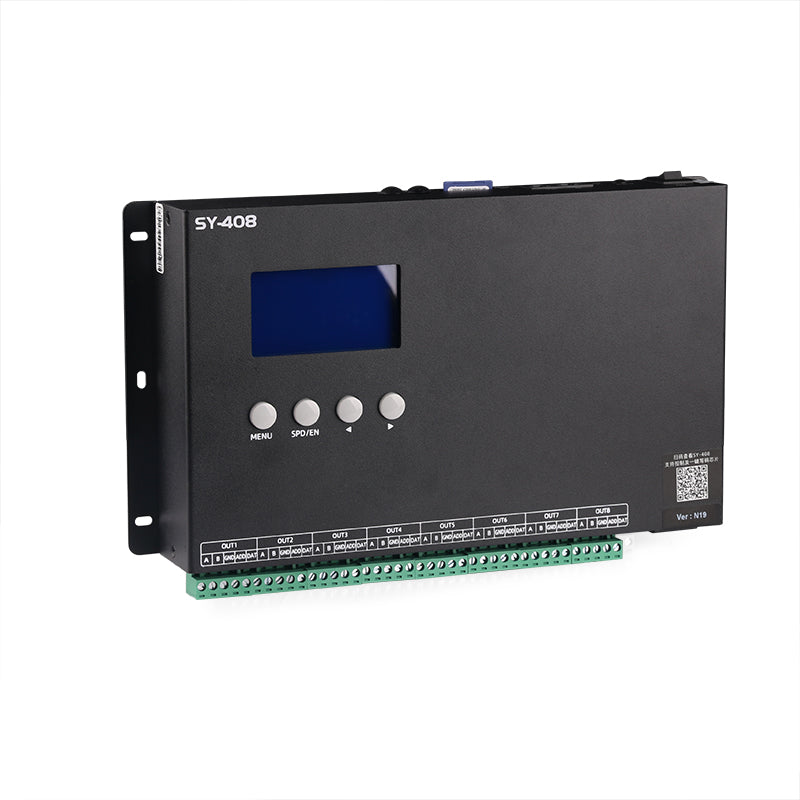

Online Sub Controller

$0.00 USD

Sale Sold out

Support access and control by LED Player software. It has a unique data processing method for complex display screens, and can easily formulate solutions.
It can be connected to a computer or SN separately for use, and supports up to 100W channels or 400 control boxes cascaded.
Support one-key coding function and LED Player software search device.
Set ID by button, simple and reliable operation.
8 independent signal data outputs, control various conventional chips of LED guardrail tube screen, point light source screen, high-power wall washer, etc.

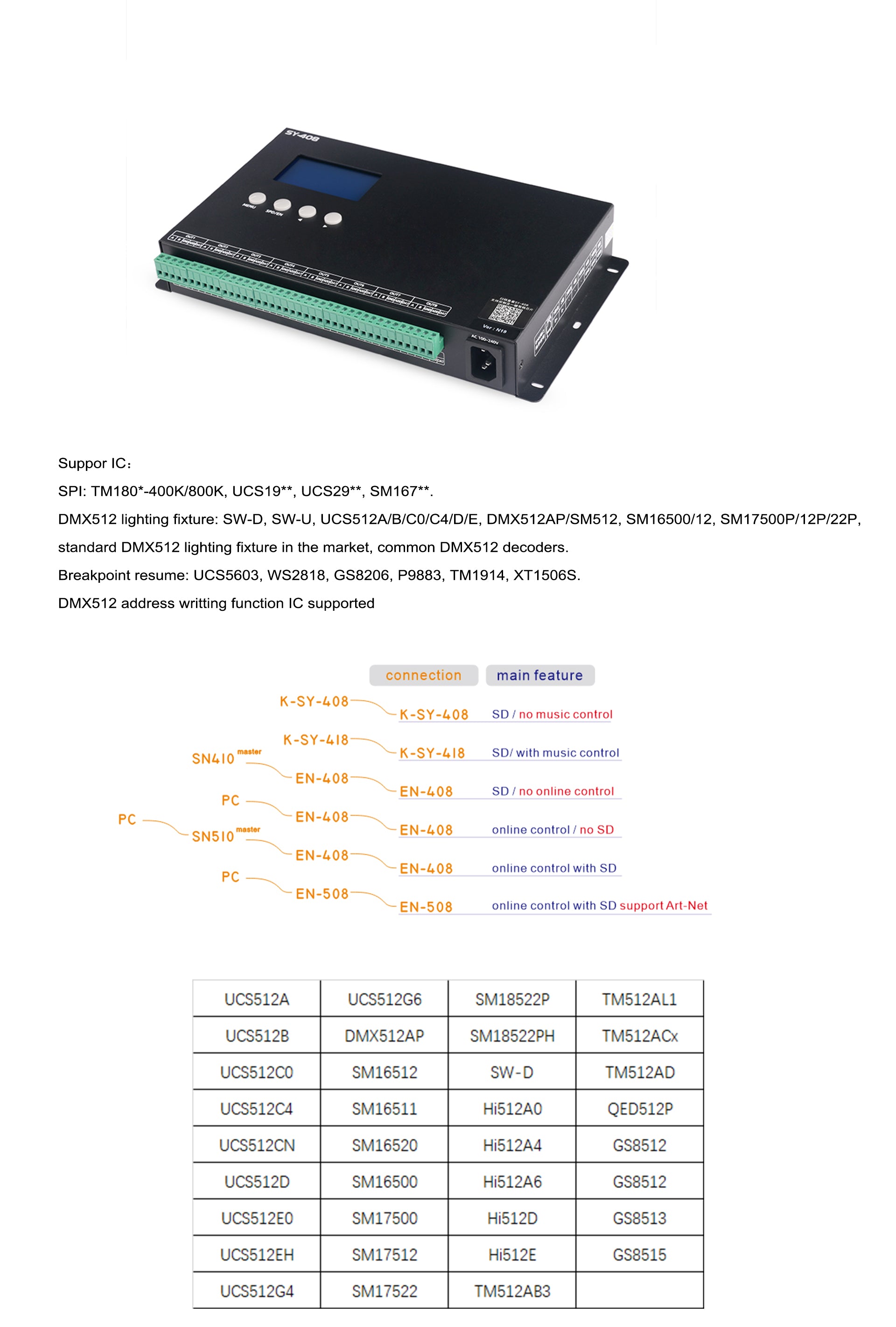

SW single-chip: D**S, D**J;
Single line: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**, SM16823E, SM16824E;
DMX512: SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH/G4/G6, DMX512AP/SM512, SM16500P/511/512, SM17500P/512P/522P,
SM17512/522, SM18522P/PH, Hi512A0/A4/A6/AD/AE, TM512AB3/AL1/ACx/AD, QED512P, GS8511/512/513/515,
Market standard DMX512, (see the "Supported Chip" section for address writing)
Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S; 65536 grayscale: UCS8903, UCS8904, UCS9812, SM16813.
The load capacity of different lamps is different. (If the frame rate is not required, the load capacity of each channel can be increased independently, and it is necessary to test it yourself).

Product Description

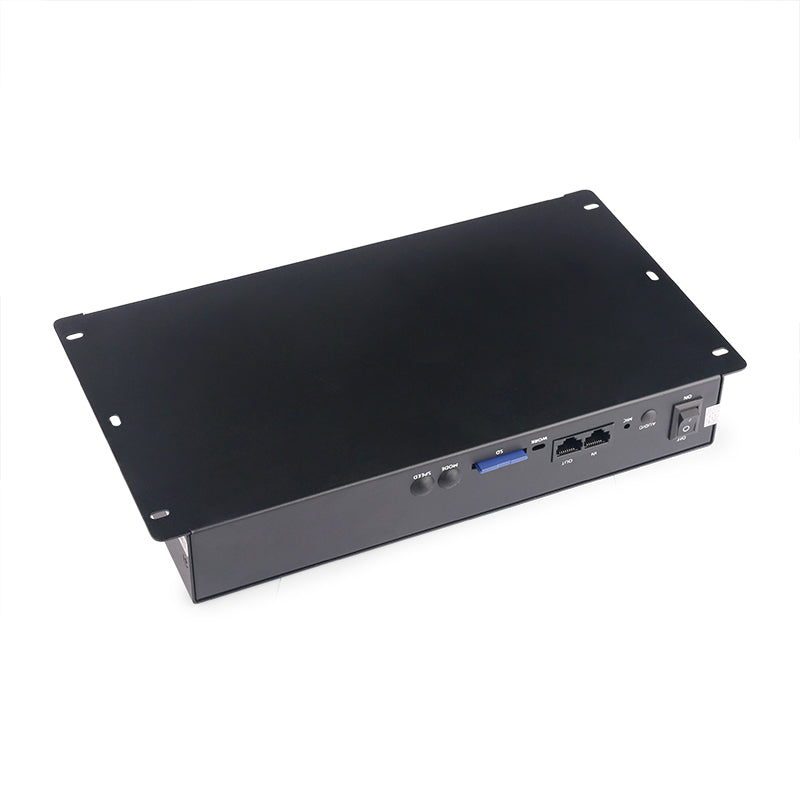

Shell material: iron
Net weight: 1 kg

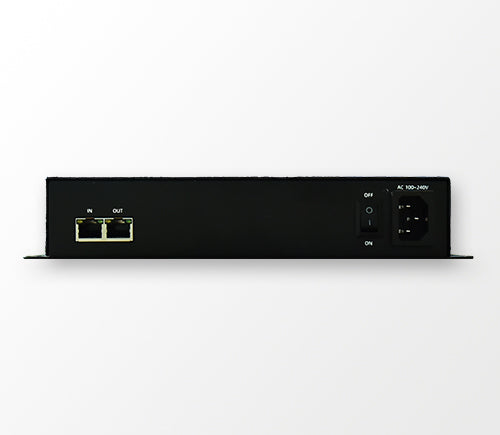

Input voltage: AC100~240V
Input signal: SW Ethernet protocol

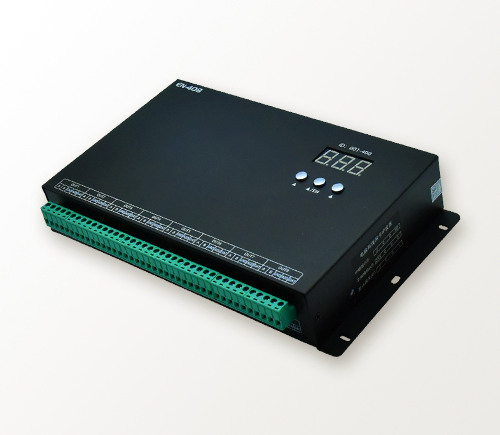

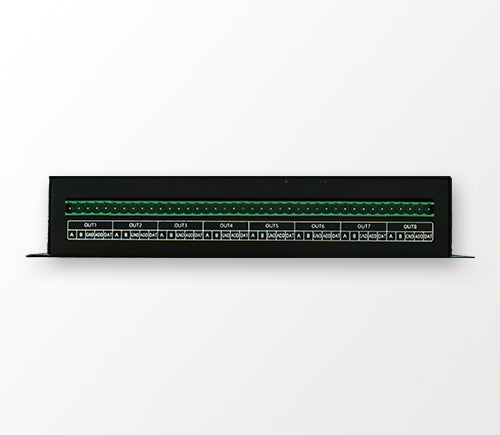

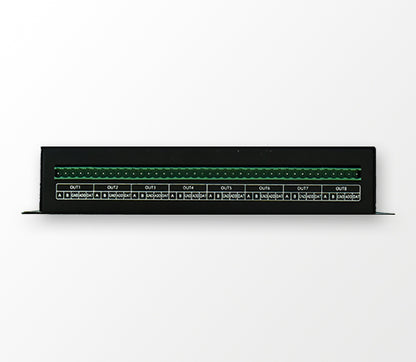

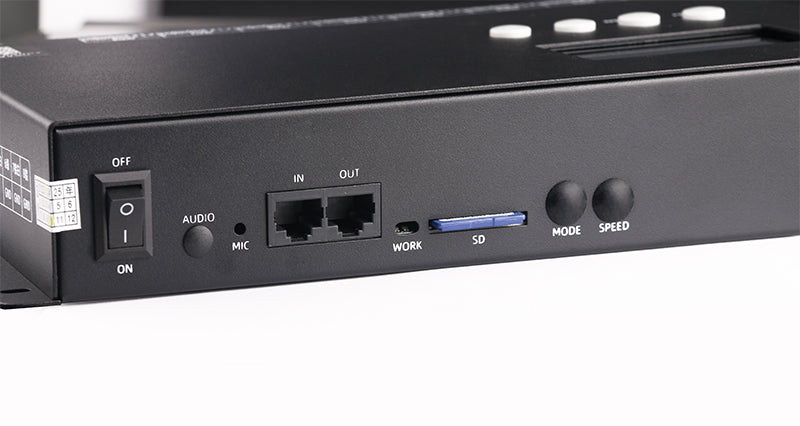

Output port: EN-408: TTL level signal & RS-485 ×8 channels
Drive points: LED Player software with lights:
SW single-chip lamps: 2880 channels × 8 channels; Single-line lamps: 3072 channels × 8 channels;
Standard DMX512 lamps: 512 channels × 8 channels; Extended
DMX lamps: 1024 channels × 8 channels;
Breakpoint resume: 2160 channels × 8 channels; 65536 grayscale: 2160 channels × 8 channels.
Output power: 5W
Working temperature: -25℃～70℃
Relative humidity: ≤50% RH
Cascade mode: Parallel (manual addressing)
Protection level:
IP20 (prevent human fingers from touching the internal parts of the appliance, prevent foreign objects with a diameter greater than 12.5mm from intruding, and no special protection against water or moisture.)
Usage environment:
Do not install this control box in an environment with magnetism, high pressure, high temperature and high humidity;
To reduce the risk of fire and damage caused by short circuit of components, please ground safely;
Please make sure to use an AC100-240V power supply and ensure that the polarity of the transformer and the control box is the same when connected to ensure the appropriate power supply voltage;
The control system is not waterproof. Please pay attention to rain and water during installation.
