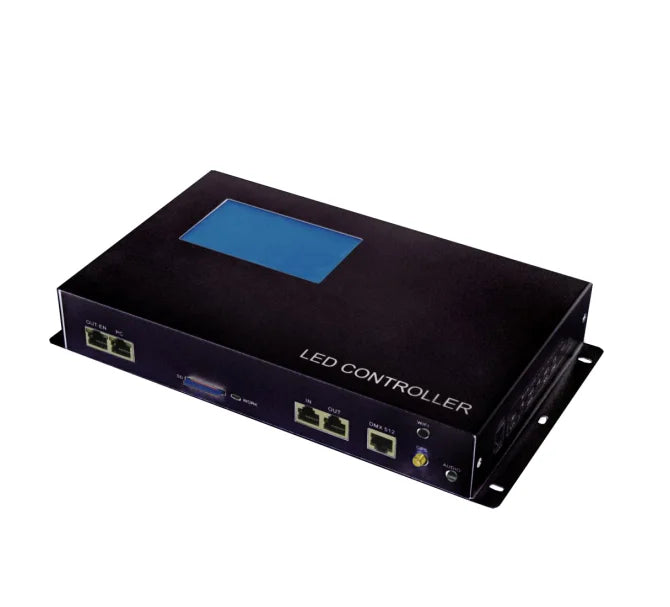

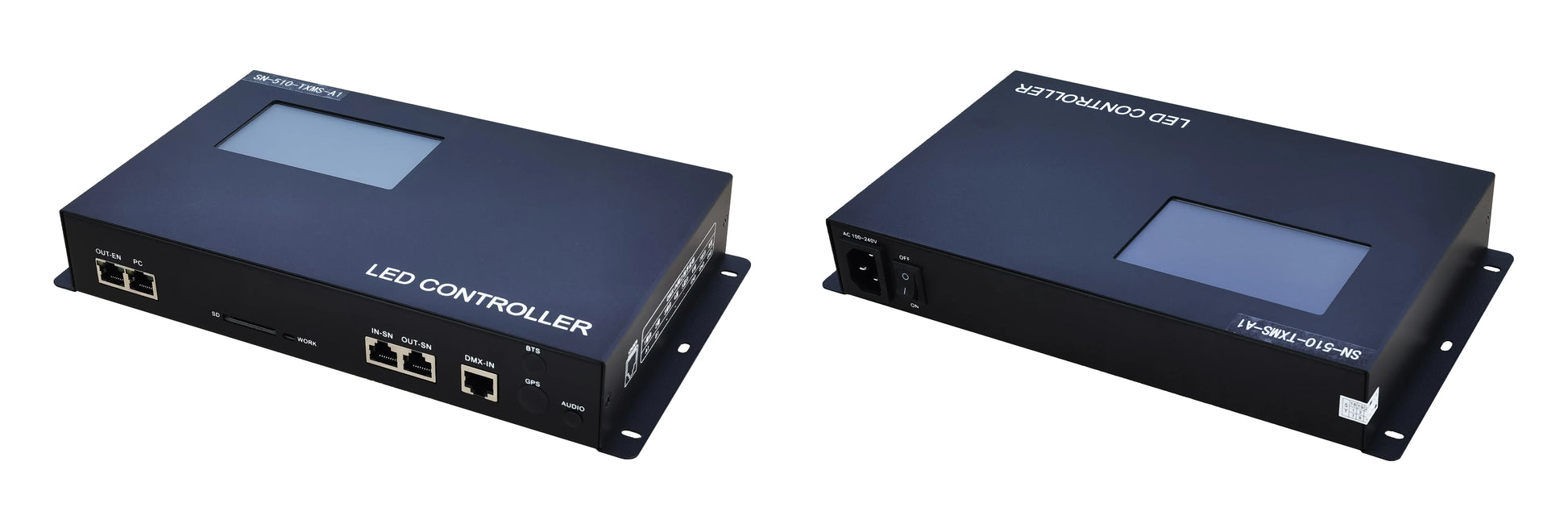

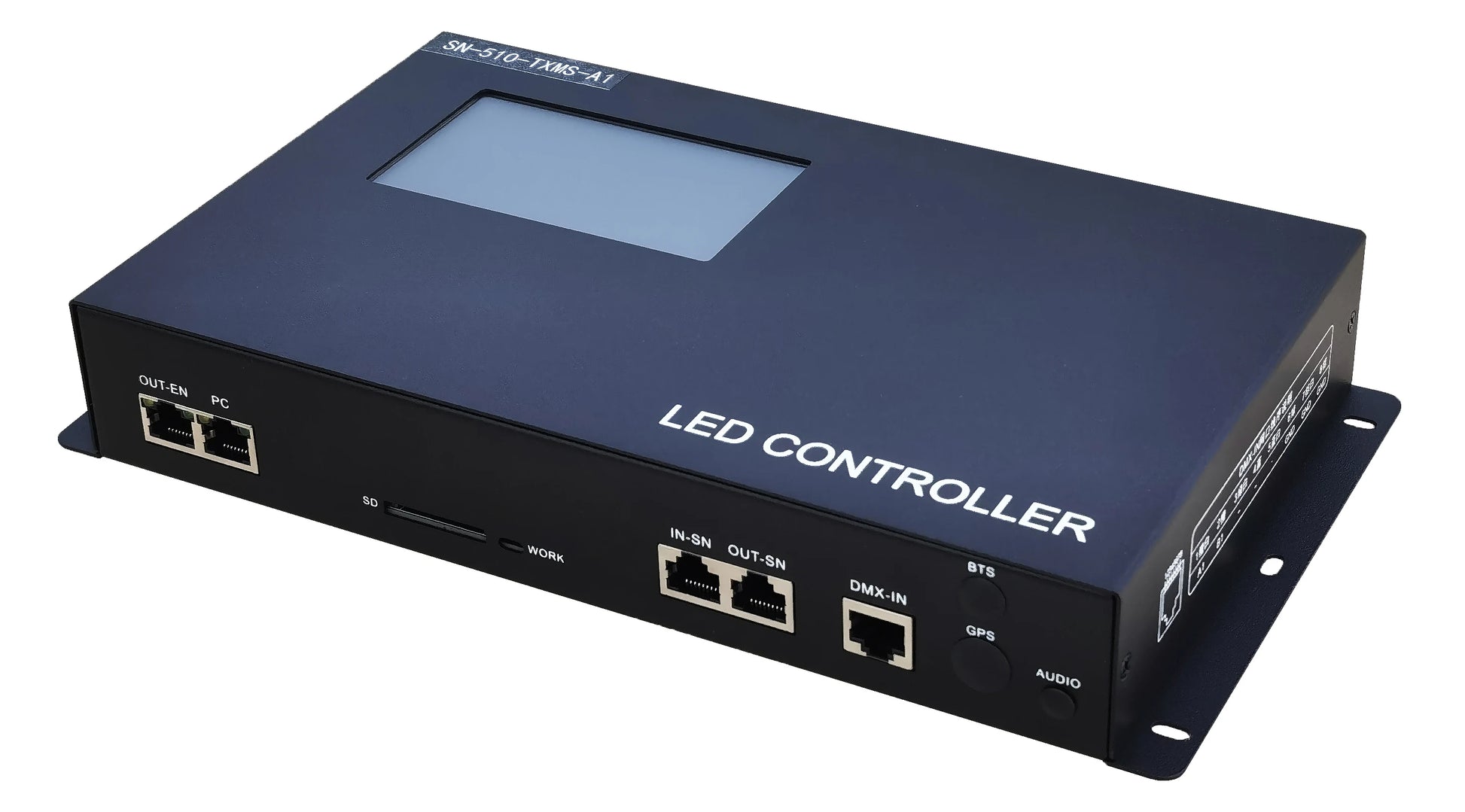

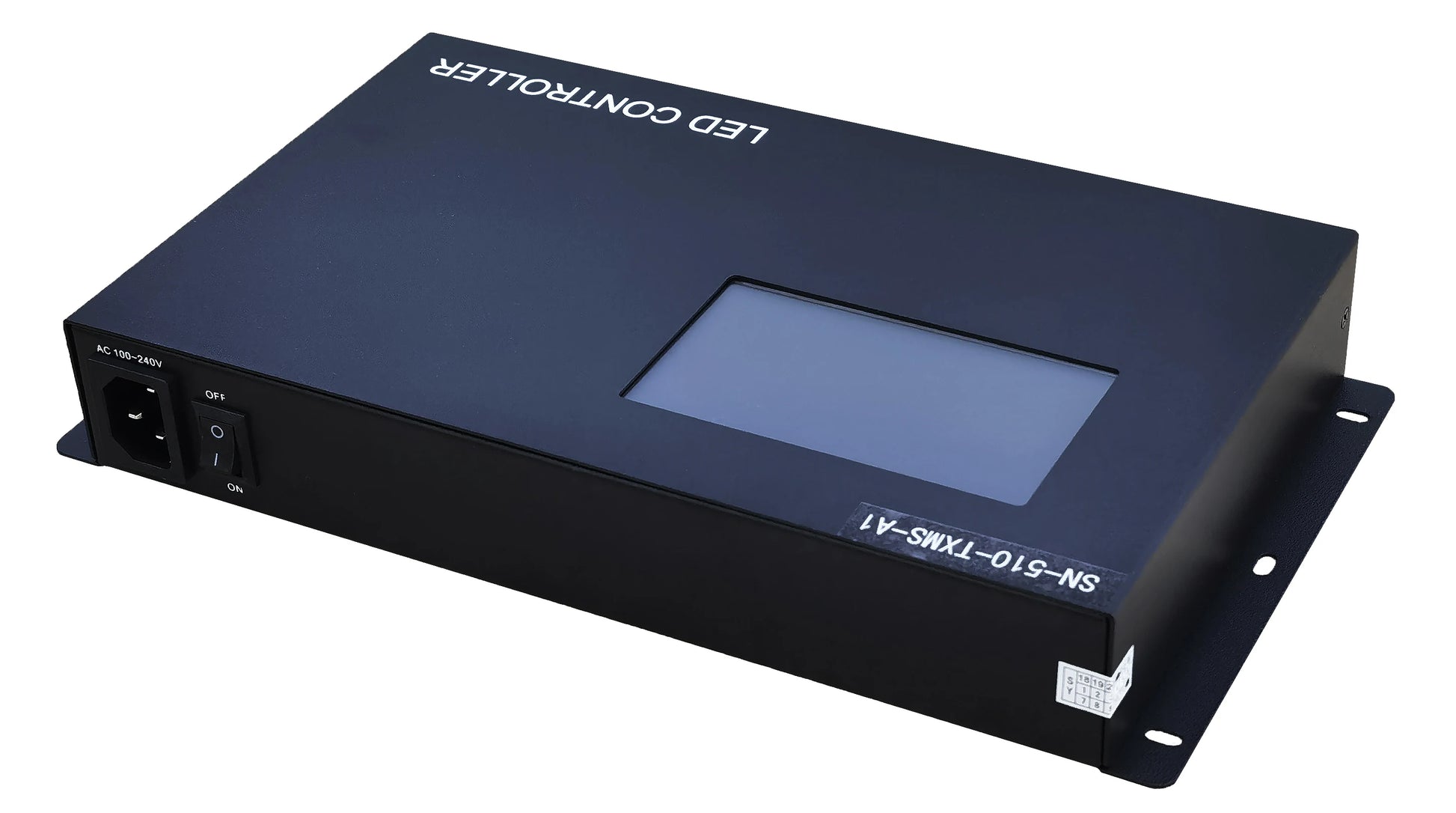

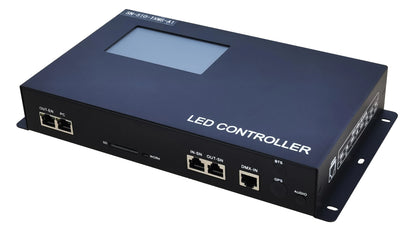

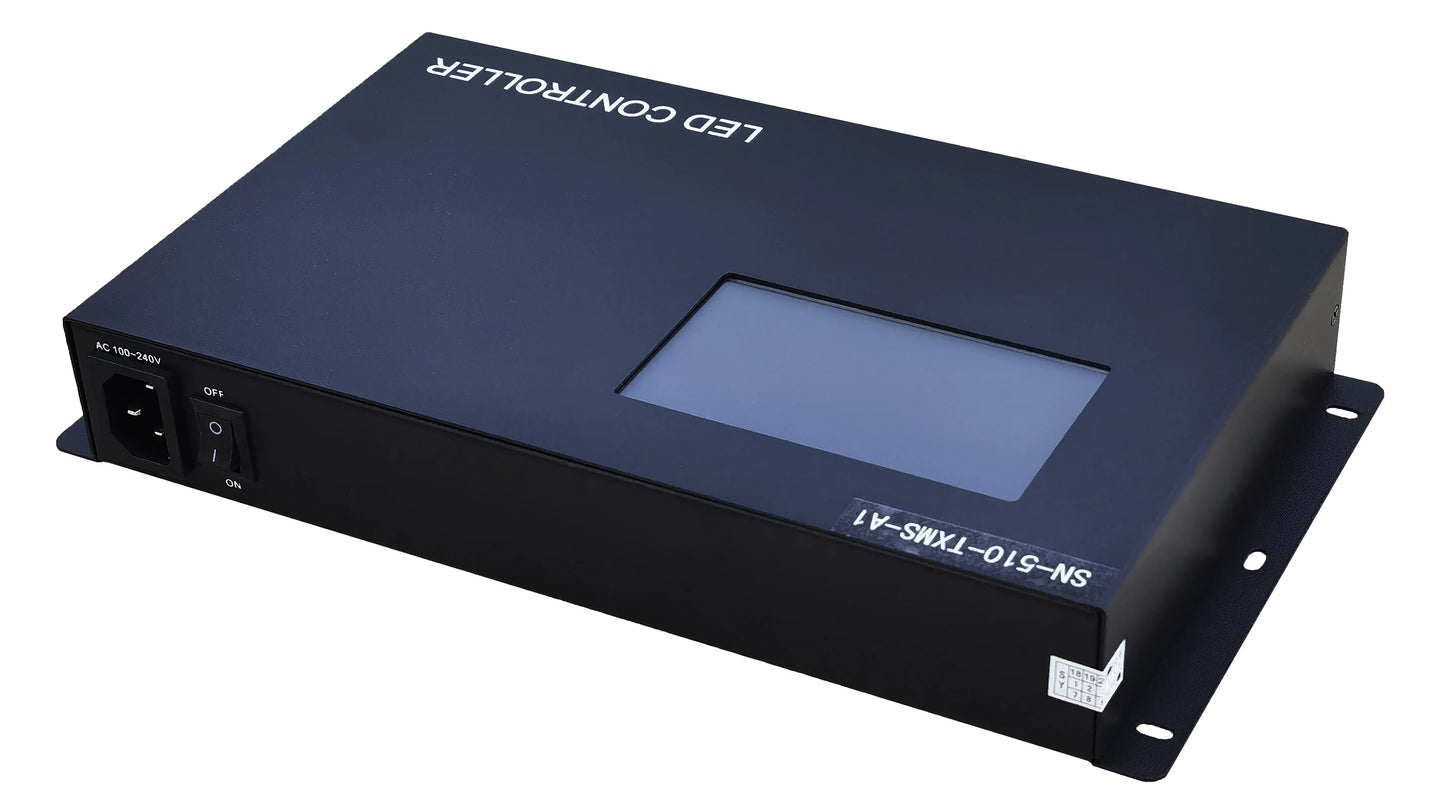

Online Main Controller SN510

$0.00 USD

Sale Sold out

The online and offline integrated system is used in conjunction with the EN series control box. When disconnected from the PC, it automatically switches to the SD card master control (intelligent control system), which is flexible and convenient;
When SN-510 is used as an intelligent master control, you only need to replace the effect file on its SD card (modifying the file name is not supported) to change the effects of all EN control boxes under the same link;
When SN-510 is used as an offline master control, a single output supports a maximum of 40W channels (including virtual points) and can control 154 EN sub-controllers; SN master controls can be expanded through master-slave cascading;
Optional time control, master-slave cascade synchronization, GPS synchronization, BTS synchronization, DMX console control, etc.

Product Description

Product specifications:
285L×156W×45H (mm)
Casing material: Iron
Input voltage: AC 100V～240V
Cascade signal: [Master-slave]
Optocoupler signal transmission, [PC-SN / SN-EN] SW 100M Ethernet protocol
Load capacity: 30W channel
Network port standard: Standard RJ45 network interface
Can carry EN box: Up to 154 units
Working power: <10W
Working temperature: -15～60℃Relative humidity: ≤50%RH
Transmission distance: Category 5e unshielded network cable, the distance between control boxes is 100 meters, [SN box master-slave optical coupler signal] transmission exceeds 100 meters, please add AP100 to increase the distance; [Ethernet protocol] For longer distances, you can choose "fiber converter", up to 5 kilometers
Protection level: IP0 (not dustproof, not waterproof)
Use environment: Please install in a dry indoor environment, avoid dust, moisture and rain.
Product Net Weight: 1300g
